Operating Temperature:
Rubber: -20°C to +80°C
Polyurethane (PU): -30°C to +80°C (up to 110°C for short periods)
Key Features
Heavy-Duty & High Torque Capacity: Large and thick tooth profile ensures uniform load distribution, offering more than twice the load capacity compared to 5M pitch belts.
Precision Transmission: Positive drive with no slippage, ensuring transmission accuracy of ±0.1%.
High Efficiency: Efficiency up to 97%–99%, with smooth meshing and low noise operation.
Maintenance-Free: No lubrication required; resistant to dust, oil, and contaminants.

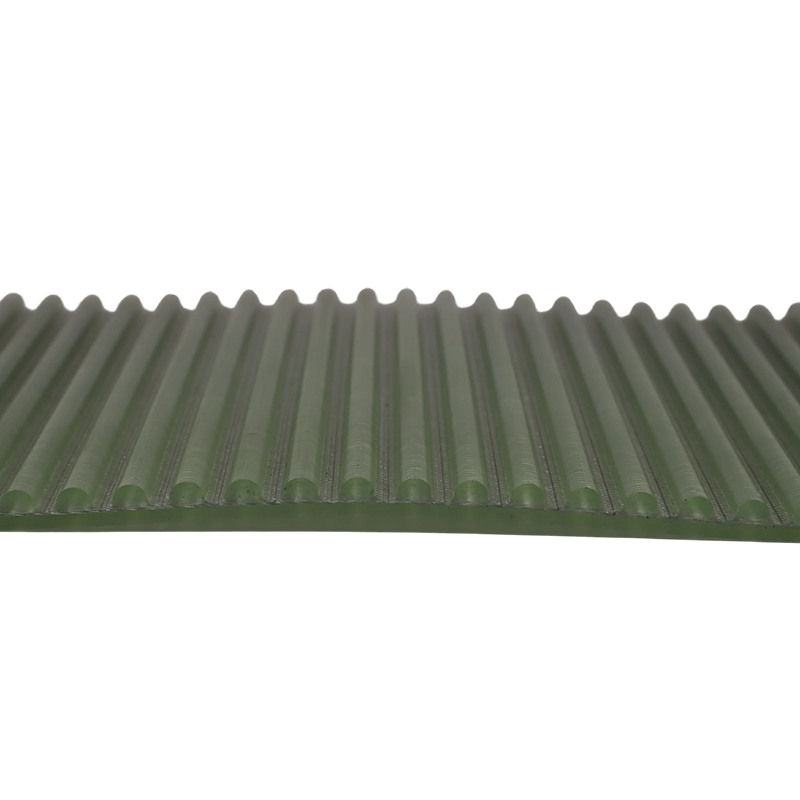

Anti-Tooth Jump Design: Deep arc tooth engagement improves stability during heavy-load start and braking conditions.
Typical Applications (Medium to High Power Equipment)
CNC machine tools, engraving machines, cutting machines
Servo spindle drives
Packaging machinery, printing equipment, textile machinery
Fans, conveyors, automated production lines, construction machinery
Industrial robots, lifting equipment, heavy-duty linear modules

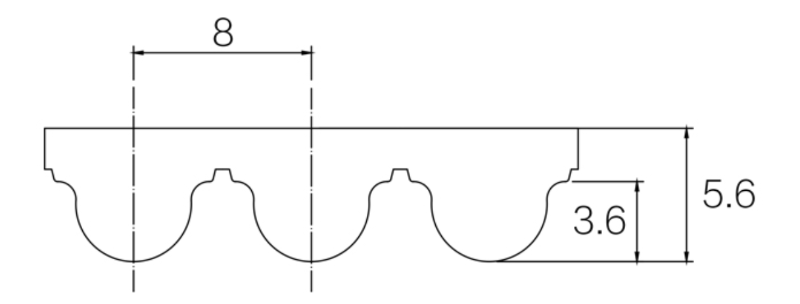

Tooth Height：3.36mm

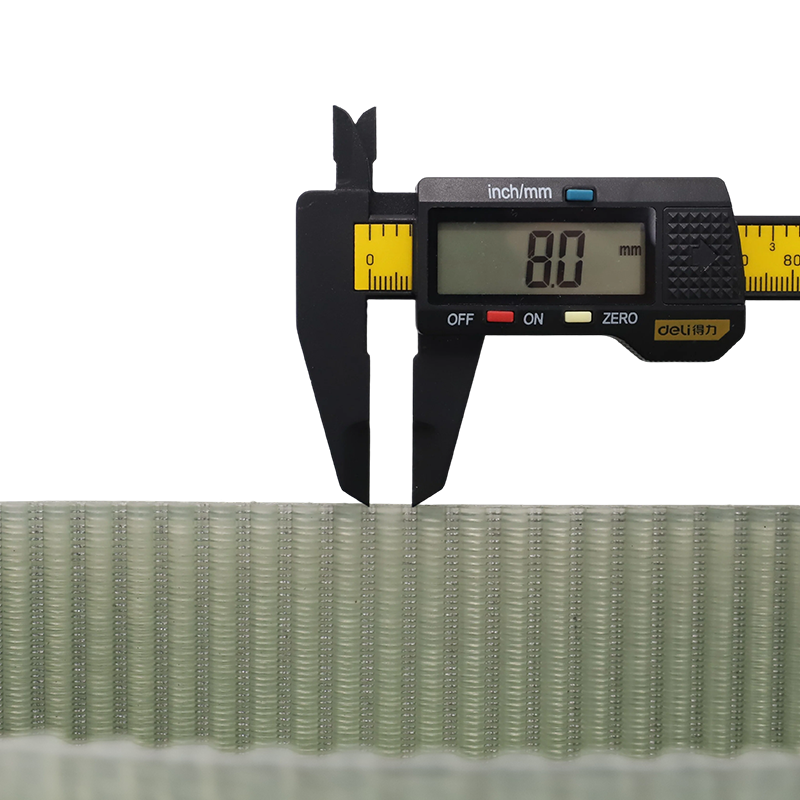

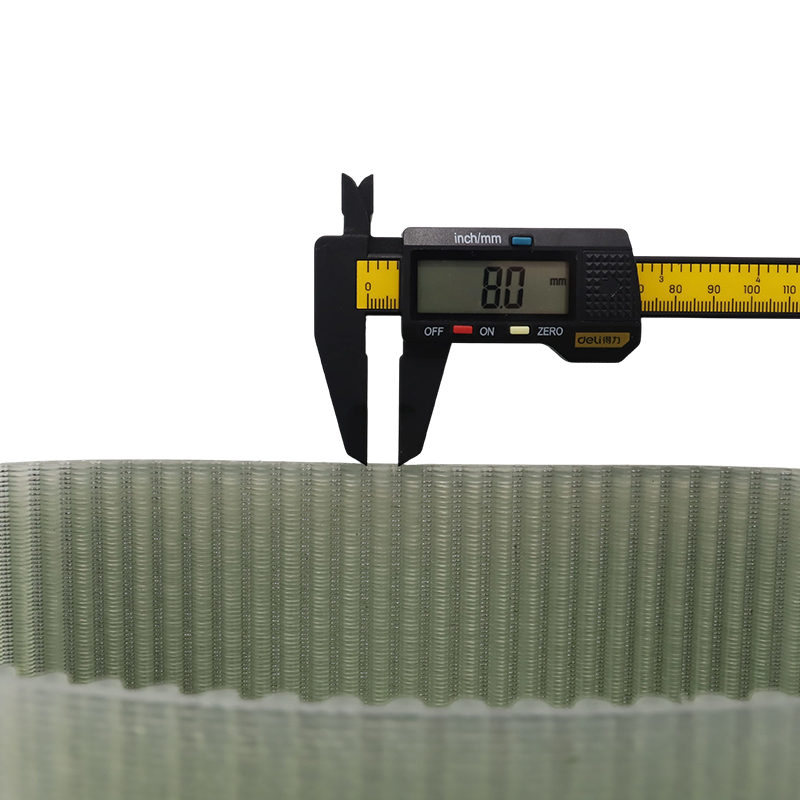

Pitch：8mm

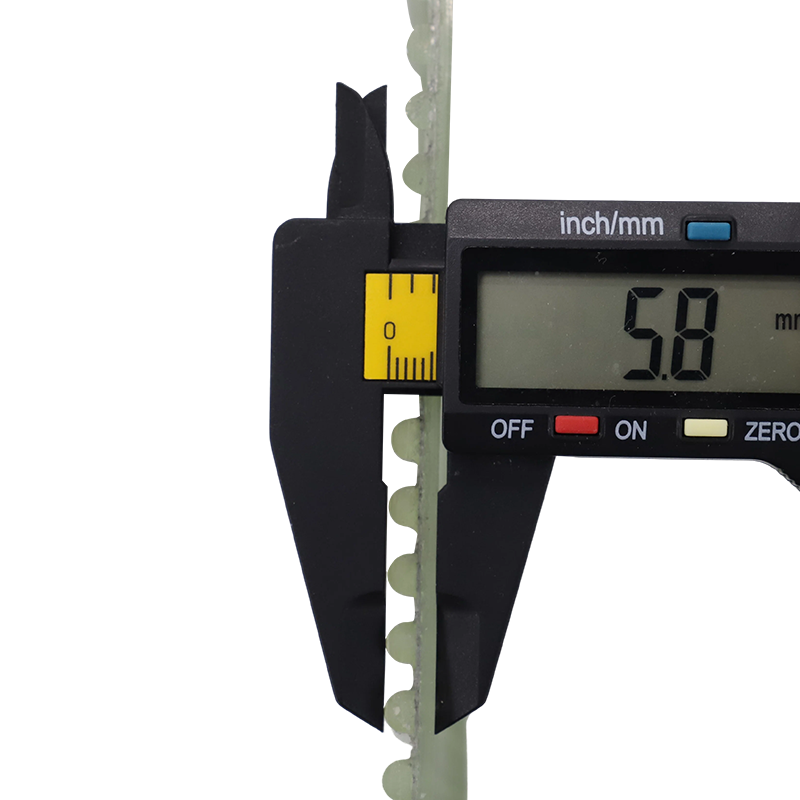

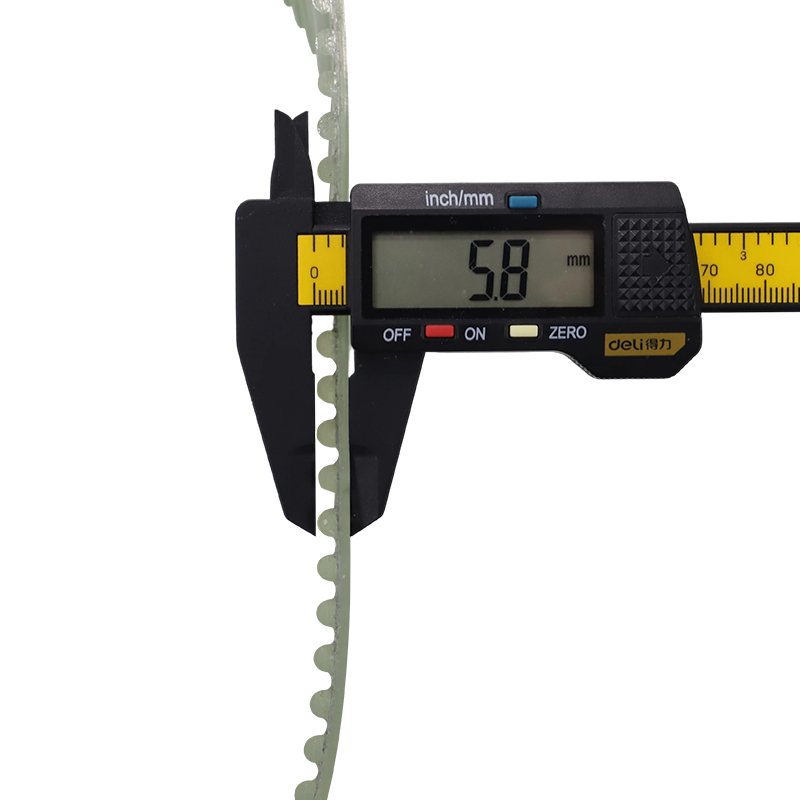

Belt Thickness：6mm
