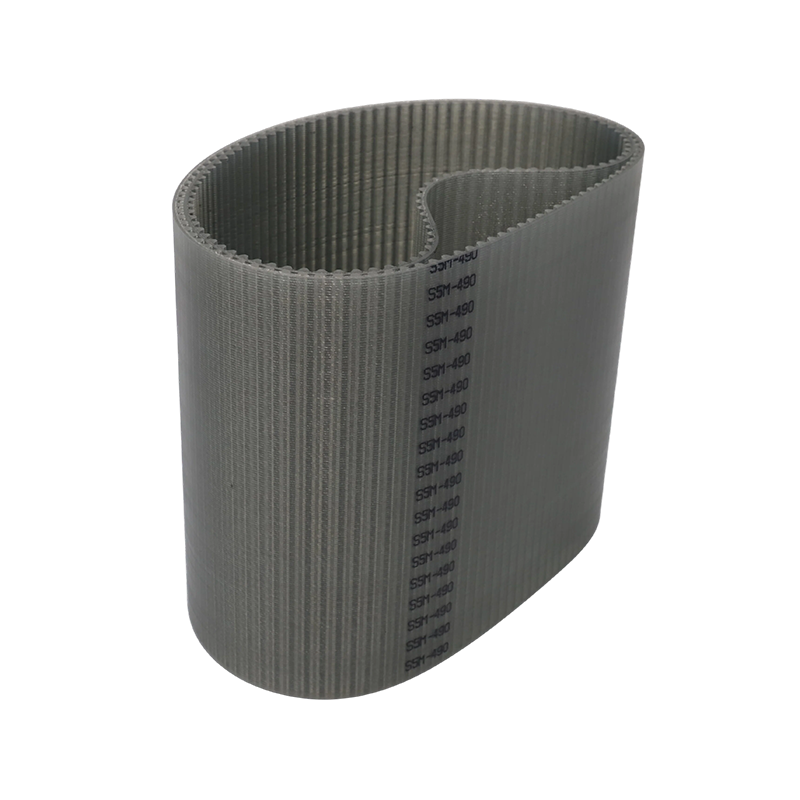

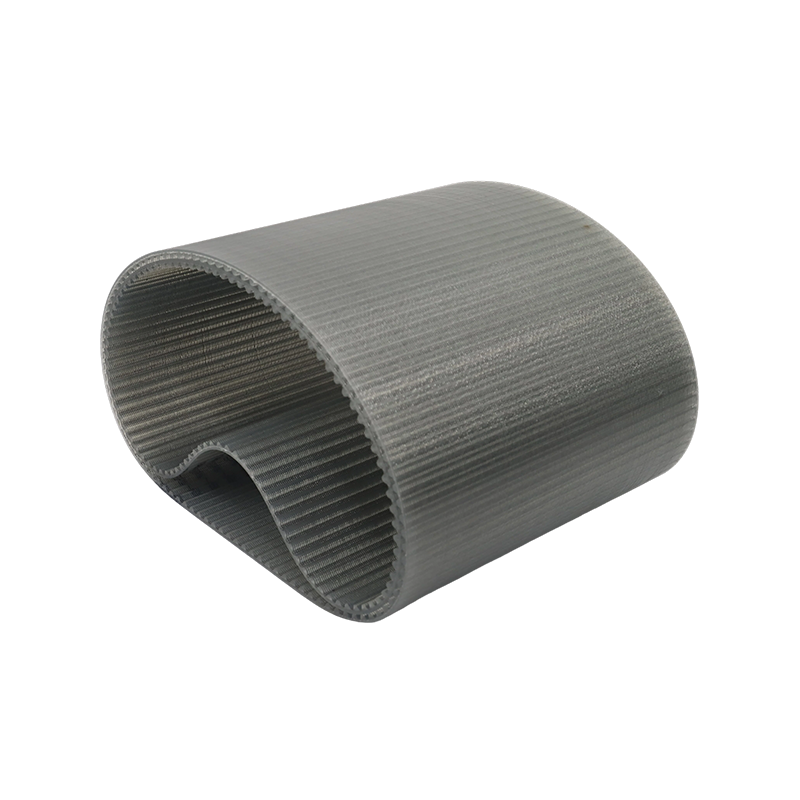

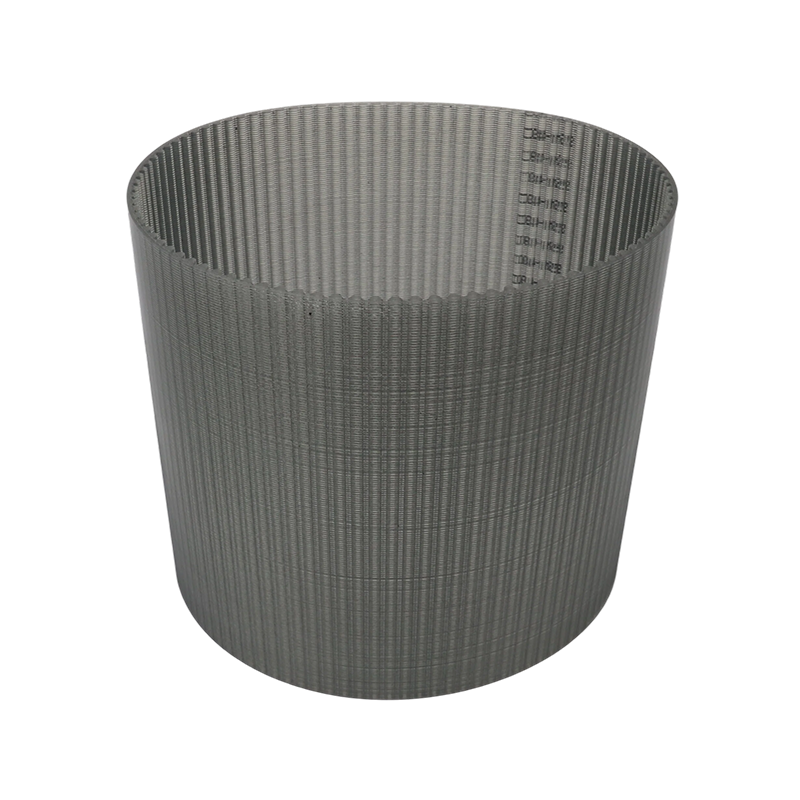

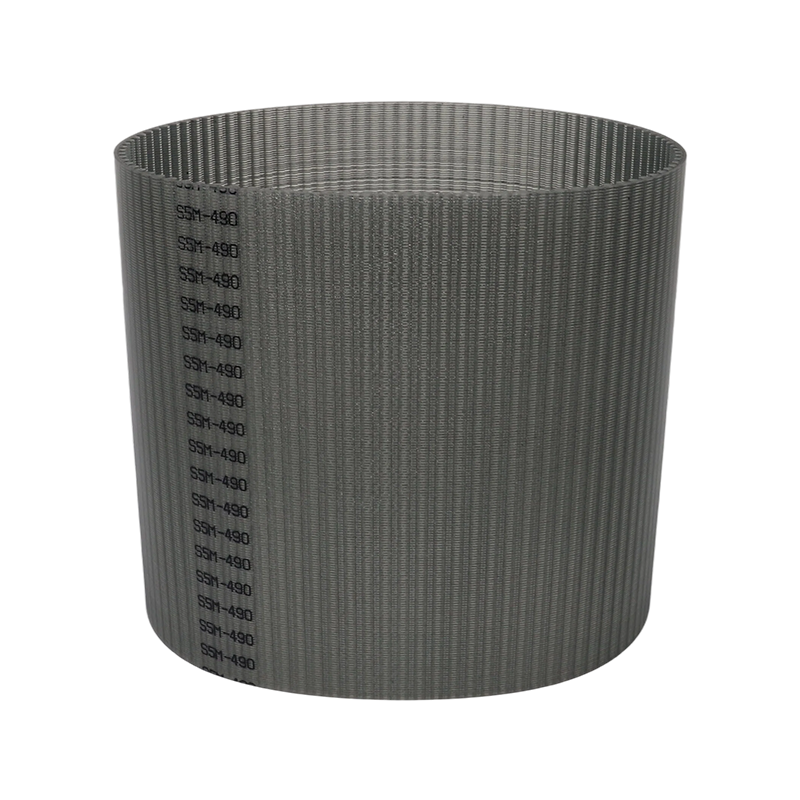

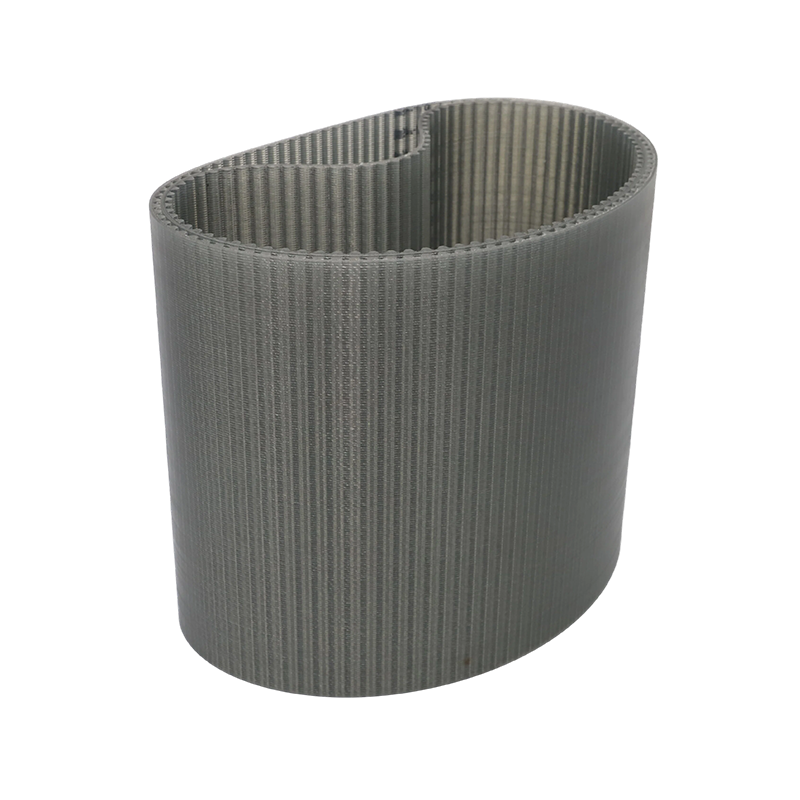

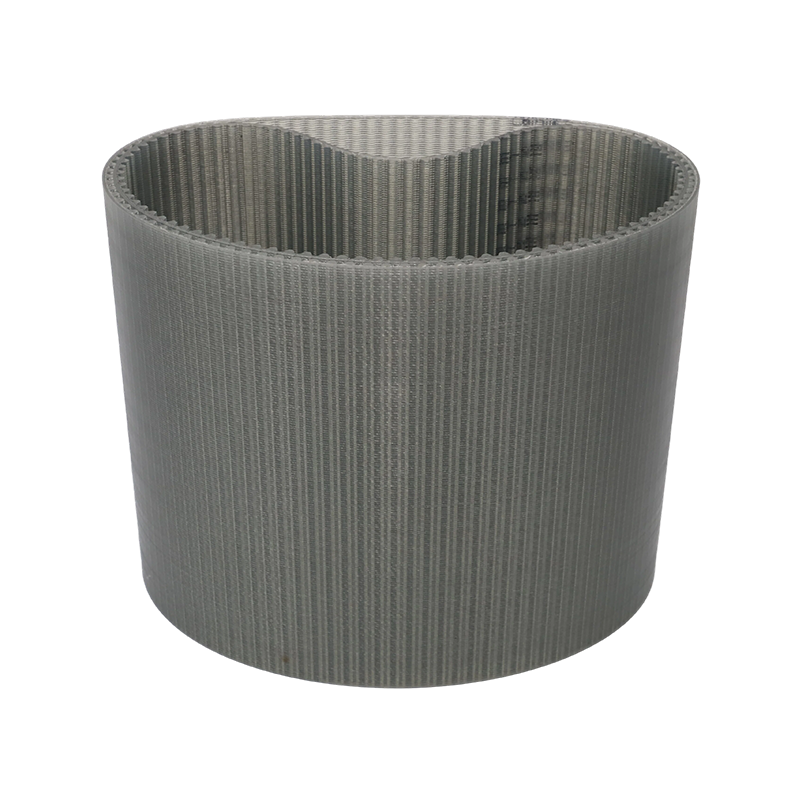

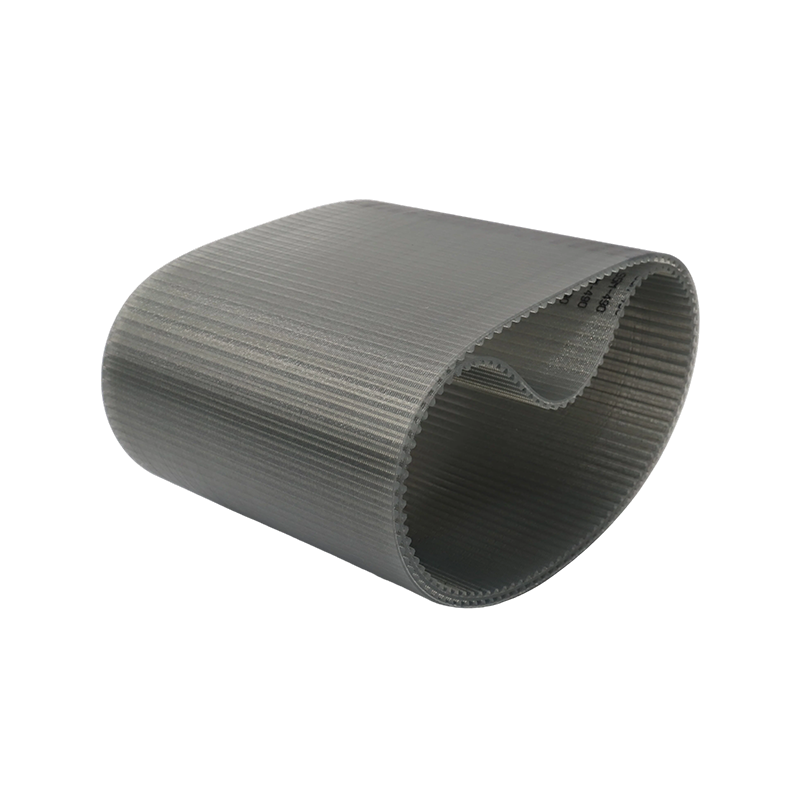

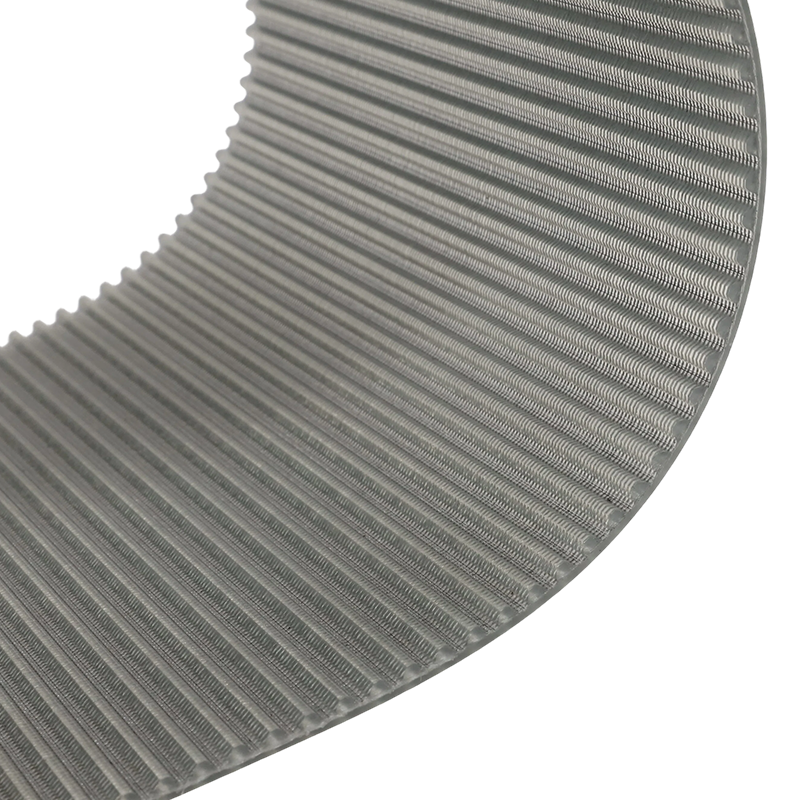

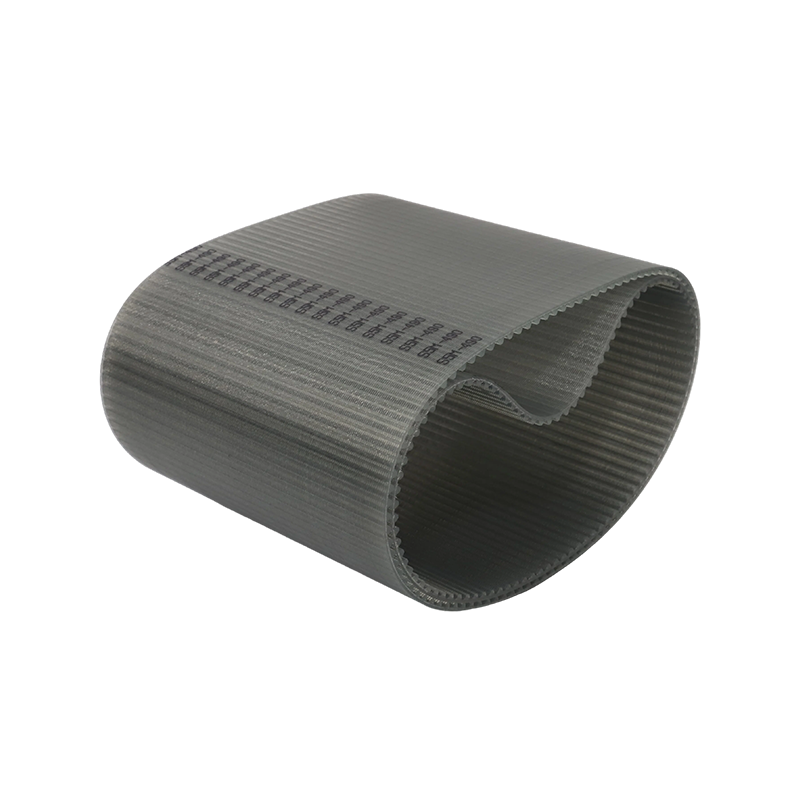

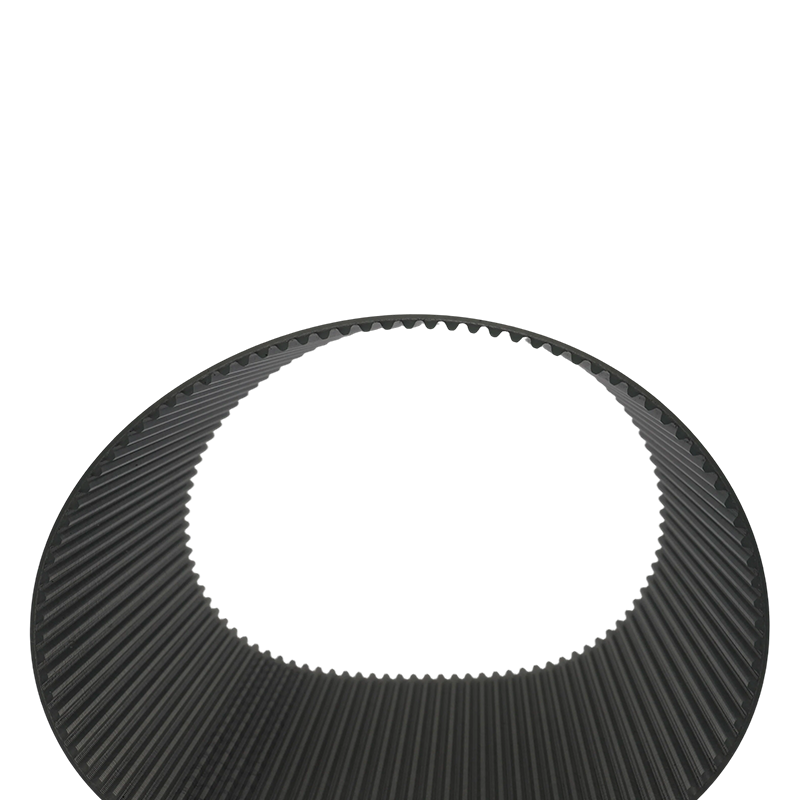

Key Features:
High-Speed Stability: Linear speed up to ≤50 m/s, noise ≤55 dB, with low vibration for smooth operation.
Enhanced Load Capacity: Over 40% higher load capacity compared to 3M trapezoidal tooth belts of the same size, with improved resistance to tooth jumping and root fatigue.
Smooth Meshing: Circular arc tooth profile reduces impact during engagement, making it suitable for high-speed operation and frequent start-stop conditions.
Wide Compatibility: Compatible with 3M trapezoidal pulleys, enabling seamless system upgrades.
Double-Sided Tooth Option: Supports DS3M (double-sided engagement), suitable for multi-pulley drives and complex transmission paths.
Typical Applications:
Automation Equipment:
Material handling modules, dispensing machines, laser cutting systems, 3C assembly lines
Medical Equipment:
Biochemical analyzers, imaging devices, precision conveying systems
Electronics & Semiconductor:
Pick-and-place machines, lithography systems, chip testing equipment
Home Appliances & Office Equipment:
Printers, scanners, robotic vacuum cleaners, smart appliances

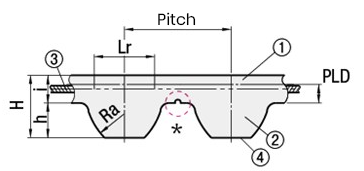

Tooth Height：1.14mm
Pitch：3mm

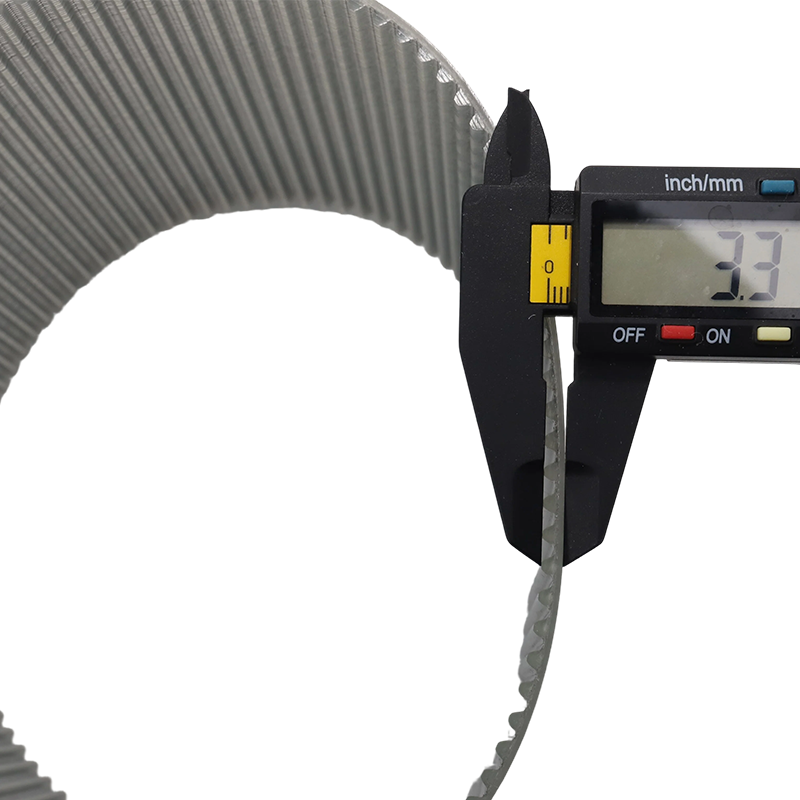

Belt Thickness：1.9mm
