Key Features:
Special 5 mm pitch tooth profile, delivering approximately 25% higher torque capacity than standard 5M circular arc profiles, with enhanced resistance to tooth jumping.
Reinforced with steel tension members for low elongation, making it suitable for precision servo positioning and linear motion systems.
Smooth meshing engagement with lower noise levels compared to traditional 5M trapezoidal tooth belts.
Clean and low particle generation, ideal for electronics automation and cleanroom environments.
Maximum linear speed: ≤ 45 m/s, compatible with high-speed servo drives.
Maintenance-free operation with no lubrication required and transmission efficiency ≥ 98%.
Typical Applications:
Linear module slides
Servo motor drive systems
3D printers
Dispensing machines
Pick-and-place machines (SMT)
Precision engraving machines
Industrial automation equipment
Pitch：5.00mm

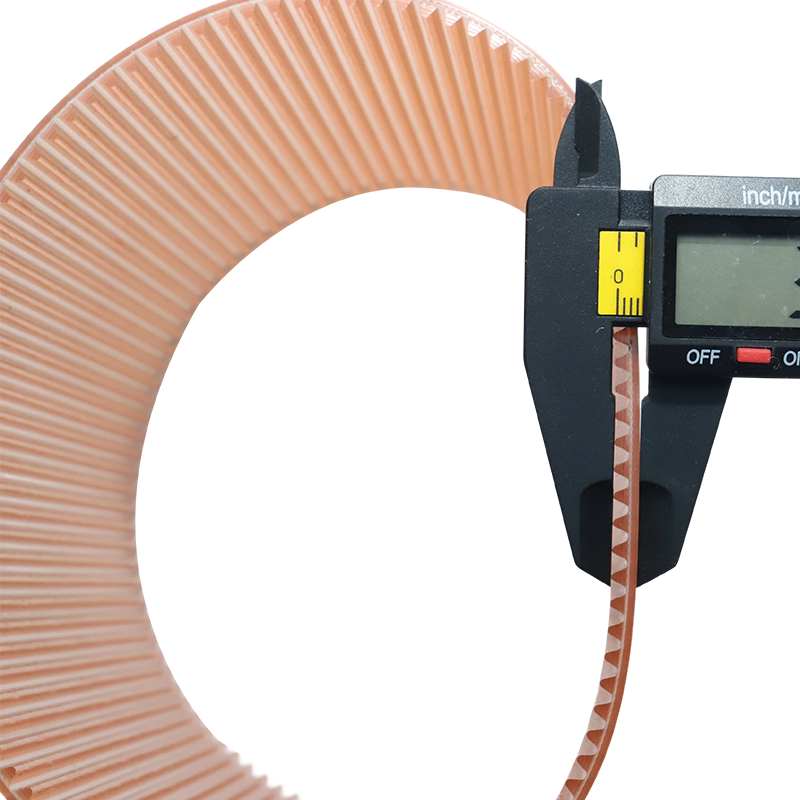

Tooth Height：1.85mm

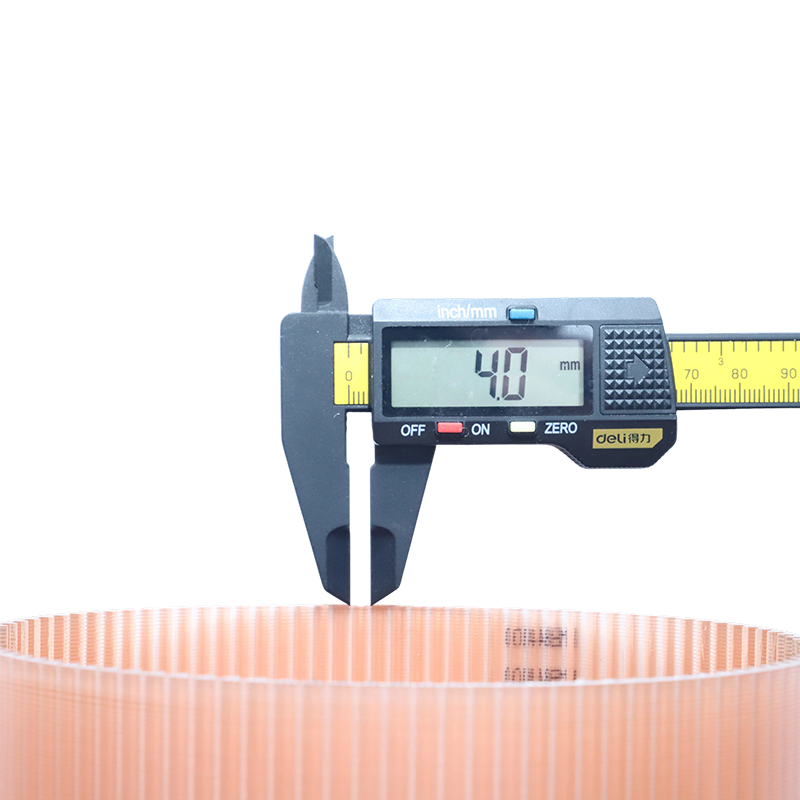

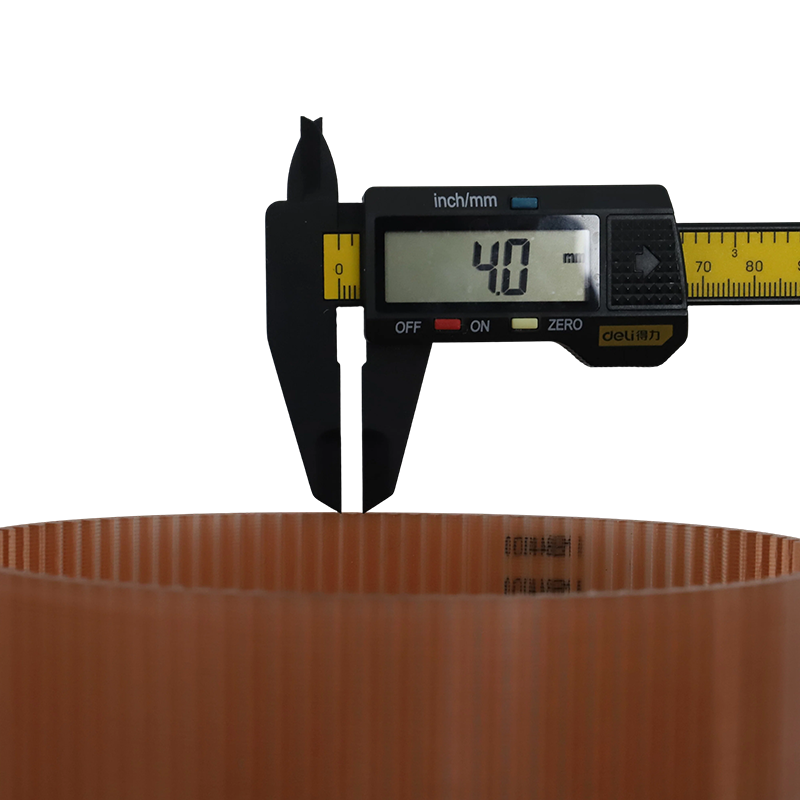

Belt Thickness：4.00mm
