Key Features:
Medium-duty general-purpose drive: Load capacity higher than XL and lower than H profiles, ideally suited for equipment in the 0.5–10 kW power range.
40° deep trapezoidal tooth profile: Ensures stable meshing, resistance to tooth jumping, and precise, slip-free transmission ratio.
Enhanced bending flexibility: Superior to H-type belts and 8M curvilinear profiles, enabling the use of smaller pulley diameters.
Maintenance-free operation: No lubrication required, low noise performance, and transmission efficiency ≥98%.
Customizable configurations: Available in single-sided teeth or double-sided designs (DA-L / DB-L).
Typical Applications:
Automated production lines
Packaging and printing machinery
Textile equipment
Fans and blowers
Conveying systems
Woodworking engraving machines
Power tools
Machine tool auxiliary drives
Small and medium servo systems

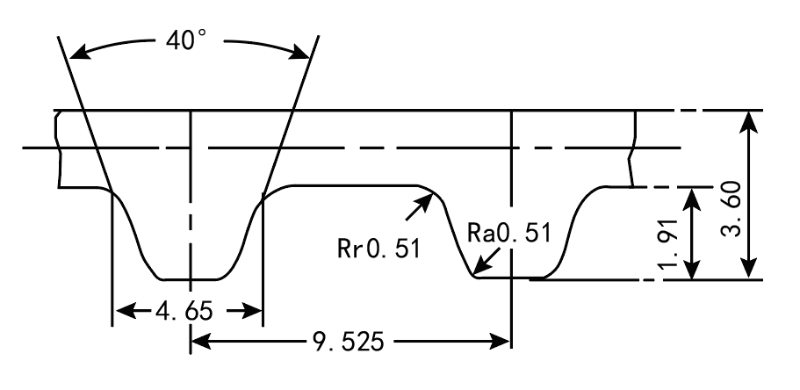

Tooth Height：1.91mm
Pitch：9.525mm

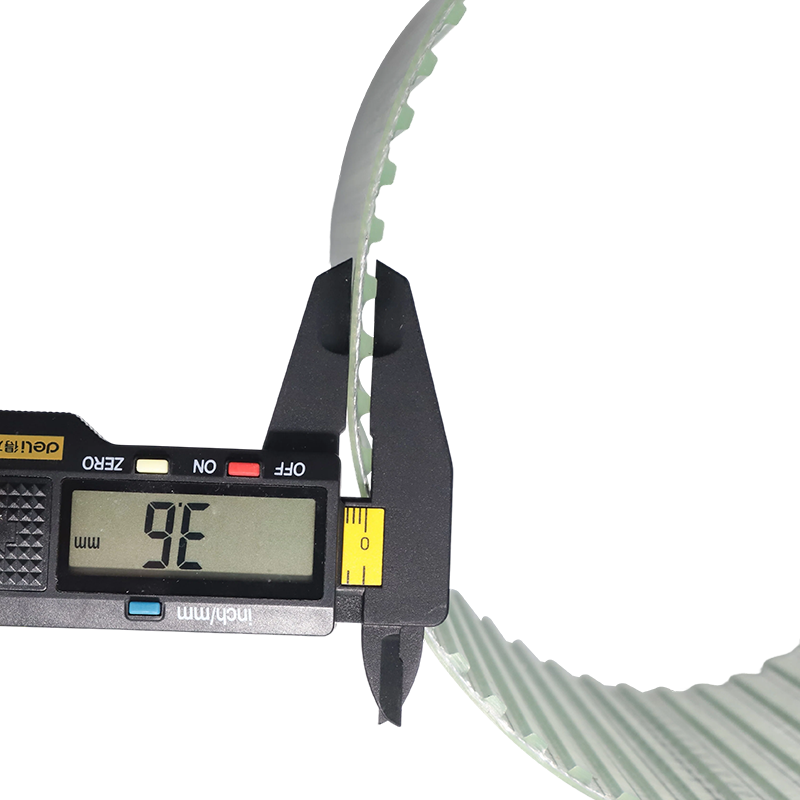

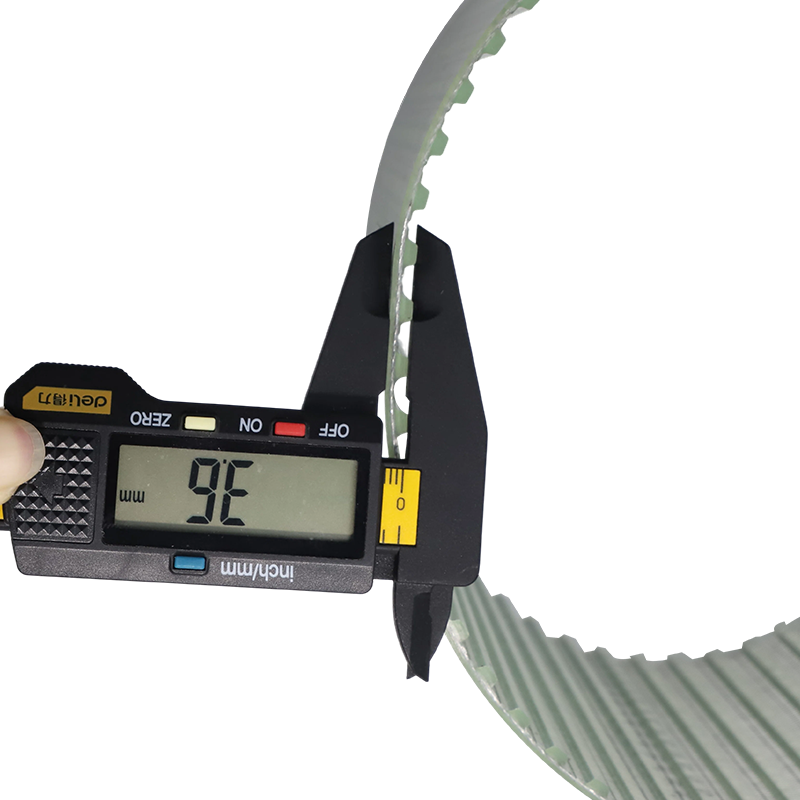

Belt Thickness：3.60mm
Angleβ°：40
